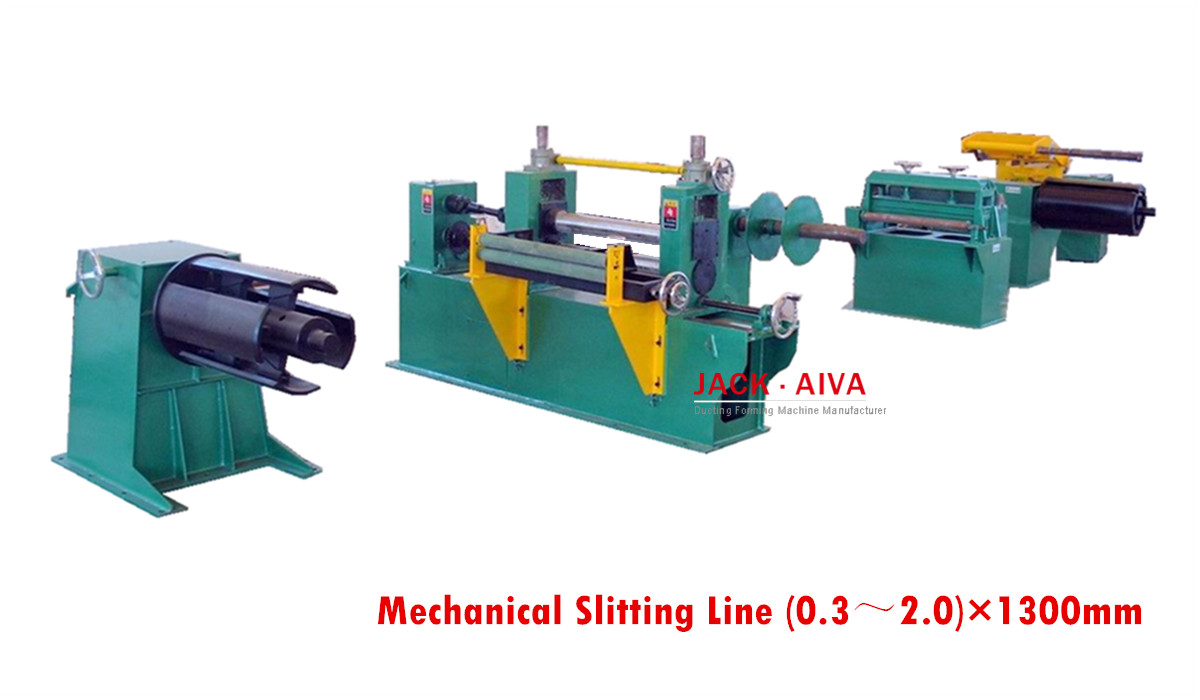

Mechanical Slitting Line (0.3～2.0)×1300mm

Products Information

Mechanical Slitting Line General Introduction

This is the Mechanical control Slitting line machine, it is the proper solution for the client that their production quantity is not too many. It can do uncoiling, slitting and recoiling works, make coil steel to any desired width coil steel. It mainly includes coil car, un-coiler, coil guide, slitting machine, scrap winder, tension unit, re-coiler and coil car, hydraulic system, Etc. It mainly used in cold or hot rolled, galvanized iron, PPGI, stainless steel, carbon steel, silicon steel and all the other kinds of metal materials with surface spreading.

Technical information- slitting line

Material: HR, CRC, GI, PPGI, SS

Material weight: Max 8000kg

Material thickness: 0.3mm – 2.0 mm

Material width: max 1300mm

Material inner diameter: 460mm~520mm

Material outside diameter: 1200mm

No.of Slitts 2~ 30 Nos

Slitting speed: 0-60m/min

Width tolerance: +/-0.15 mm

Set up Position: according client’s request.

Total power: about 37KW.

Slitter Machine parts in the working line

This whole line is consisted of hydraulic de-coiler with its Coil loading car (capacity 8000kg), slitting machine with scrap re-coiler and center line adjusting part, strip tension manual controller, hydraulic re-coiler with coil loading car (8 tons), electrical control system, hydraulic control system, etc.

Coil-loading---de-coiler----Disk slitting (strip aligning with Scrap re-coiler)---Tension controller---Recoiling---Coils-discharging

This line can be adjusted to do recoiling or dividing work to meet customer’s demand.

It is our goal for us to provide high quality customized roll forming machines for various industry, such as agricultural, Appliances, Building Products, Curtain Rods, Tube and Pipe, Furniture & Lighting, Garage Doors, Highway & Roads, Home Furnishing, HVAC, Pallet Racking & Shelving, Steel Framing Machines, Auto and Transportation, Ceiling & dry Wall system,and other relative roll formed product manufacturing machine for customers around the globe.

At Jack-aiva, we adhere to strict implementation of ISO standards in production and operation. We purchase superior materials and components from well-known branded companies. All incoming materials are inspected by highly trained professional personnel to ensure the reliability of our products from the very beginning. Our staff undergoes continual training to improve skills and raise awareness of quality. Furthermore, by establishing partnerships and technical support with specialized research institutions. We are able to guarantee the superiority of our products. Our quality inspection department conducts rigorous quality checks throughout the manufacturing process, all to ensure our machines are compliant with international standards. From the selection of our outsourced parts, through each stage of production, to the final product, SBJX works hard to make sure our machines are head and shoulders above the competition.

In order to provide high quality products at affordable prices, our SBJX strive to cut our costs in a variety of ways without compromising on quality. For example, through the use of effective management and efficient distribution of enterprise resources, we can reduce waste at very step of production. Advanced manufacturing equipment also helps improve our production efficiency, resulting in reduced costs. What’s more, our location affords us easy access to an abundance of raw materials, enabling us to acquire superior materials at low prices from local suppliers. Our manufacturer is in the booming economy in the Yangtze River Delta. This along with our easy access to many forms of transportation, greatly reduces our logistics costs and lowers customer’s shipping chargers. These factors enable us to offer our products at lower prices.

Our products have gained us a great number of customers throughout the world. If you are interested in our products, please contact with us via phone or email. The staff at SBJX is looking forward to working with you.
