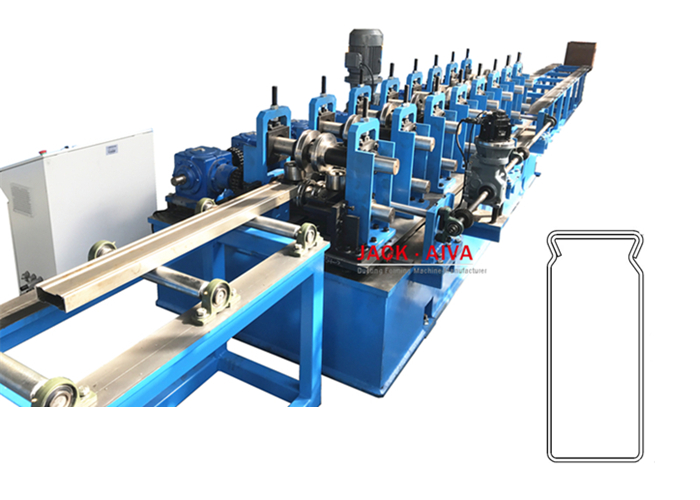

SY Beam Roll Forming Machine

Brief Introduction - SY beam Roll Forming Machine, Rack Post

We are one of the leading manufacturer in china to supply the machine, production of the profiles used for Racking storage system. Our SY beam Roll Forming Line is developed based on fully absorbing abroad competitors' advanced experience, it applied new crafts, new techniques and solved effectively many problems brought plate without any damages. its full line achieved standardized, intelligent and high efficiency production, reduced product period greatly, saving time and labor, it is the idea equipment for the SY beam production.

SY beam profile roll forming line is with profile adjustable system, it is controlled by hand wheel or can be by servo motor, The width can be processed from 80mm to 160mm. it is easy and simple to be operated.

General Technology Specifications- SY beam Roll Forming Line

the whole line is with Simple structure, beautiful exterior, the whole machine buildup by forge steel, the whole process after welding, so suit structure, strong loading capacity, working calm. The SY beam roll forming line is consisted of de-coiler, main roll former and hydraulic tracing cutter, etc. The technology flow is as following,

De-coiler--- Main roll forming machine---- cut-to-length---- box assembly machine---- Completed product

Main Parameters - SY Beam Roll forming Line

- Coil width: according the profile drawing

- Max working speed: 10-15m/min (not including cutting time)

- Roll station: about 16 stations, flatting roller station 7 sets, depends on designing

- Material of roller: GCr15, quenched to 56-58°

- Material of main shaft: ¢70mm, 40Cr, treatment

- Main power: 11KW motor.

- Forming thickness: 1.8mm, Q195, Q235 material

- Transmission: chain driving

SY Beam for Racking Storage System

The following profile for reference:

It is our goal for us to provide high quality customized roll forming machines for various industry, such as agricultural, Appliances, Building Products, Curtain Rods, Tube and Pipe, Furniture & Lighting, Garage Doors, Highway & Roads, Home Furnishing, HVAC, Pallet Racking & Shelving, Steel Framing Machines, Auto and Transportation, Ceiling & dry Wall system,and other relative roll formed product manufacturing machine for customers around the globe.

At Jack-aiva, we adhere to strict implementation of ISO standards in production and operation. We purchase superior materials and components from well-known branded companies. All incoming materials are inspected by highly trained professional personnel to ensure the reliability of our products from the very beginning. Our staff undergoes continual training to improve skills and raise awareness of quality. Furthermore, by establishing partnerships and technical support with specialized research institutions. We are able to guarantee the superiority of our products. Our quality inspection department conducts rigorous quality checks throughout the manufacturing process, all to ensure our machines are compliant with international standards. From the selection of our outsourced parts, through each stage of production, to the final product, SBJX works hard to make sure our machines are head and shoulders above the competition.

In order to provide high quality products at affordable prices, our SBJX strive to cut our costs in a variety of ways without compromising on quality. For example, through the use of effective management and efficient distribution of enterprise resources, we can reduce waste at very step of production. Advanced manufacturing equipment also helps improve our production efficiency, resulting in reduced costs. What’s more, our location affords us easy access to an abundance of raw materials, enabling us to acquire superior materials at low prices from local suppliers. Our manufacturer is in the booming economy in the Yangtze River Delta. This along with our easy access to many forms of transportation, greatly reduces our logistics costs and lowers customer’s shipping chargers. These factors enable us to offer our products at lower prices.

Our products have gained us a great number of customers throughout the world. If you are interested in our products, please contact with us via phone or email. The staff at SBJX is looking forward to working with you.
