    Heavy U Profile Roll Former, 10mm Thickness U Profile

    Ask Lasest Price
    Brand Name : Jack-Aiva
    Price : Negotiable
    Delivery Time : 100 working days
    Payment Terms : T/T L/C
    Certification : CE SGS
    • Product Details
    • Company Profile

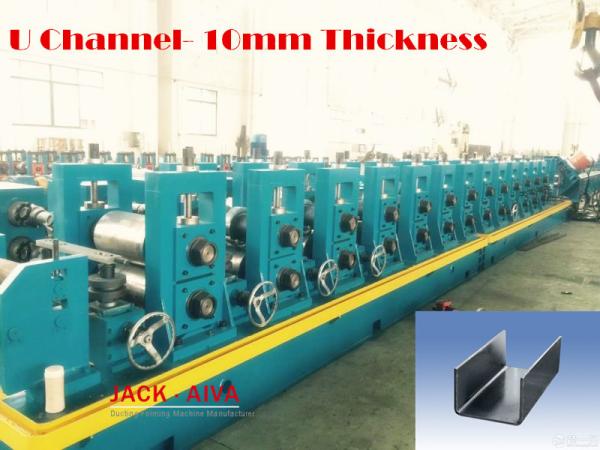

    Heavy U Profile Roll Former, 10mm Thickness U Profile

    U Channel Roll Former


    Heavy Profile Cold Roll forming Machines for production steel Structural Channel products - U Profile

    This U channel is roll-formed from Hi-Tensile Galvanised steel, thickness 10mm. With the advantage, it is widely adopted in Building construction Industry – commercial and residential, they are primarily used to provide lightweight, economical, efficient roofing for framed structures. Our Manufacturer is one of the leading suppliers in china to design and manufacture customized heavy profile roll forming machines.


    Technology Specifications- Roll Forming Machine

    The whole roll form line is consisted of de-coiler, material feeding entrance, flatting device, holes punching equipments, main roll forming machine, hydraulic cutting part, hydraulic system, PLC control system and run out table, etc. the technology flow is as following,

    De-coiler (15 tons) - Strip feeding roll + leveler+ Main Roll Former - Stationary cutter - Unloading Table (Without power)- - completed product


    Main Parameters

    Feeding material Thickness:Raw Material: Steel Q345;
    De-coiler

    Max load 15000kg, single head style, with coil loading platform

    Hydraulic control, Inner extending cantilever style,

    Forming station:18 sets
    Material of roller:Quality moulds steel, polished and coated with chrome, hardness HRC58-62
    Main power:12* 11KW
    Hydraulic station power:11KW
    Hydraulic pressure:10-12Mpa
    Control system:PLC Control with touch Screen, Inverter, Encoder are MITSUBISH or Panasonic Brand Japan
    Product length tolerance2M+/- 1.0mm
    Line speed:0-10m/min (not including cutting material time)
    Size of main machine:11000×1800×1800mm
    Equipment weight:25000kg

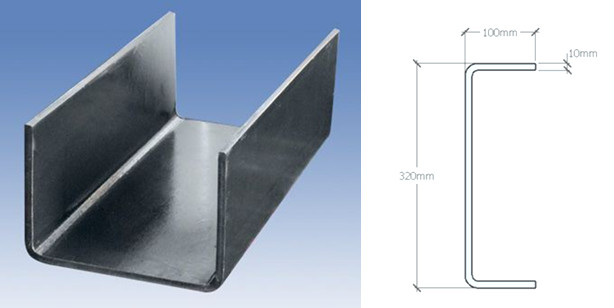

    U channel Section
