    Guardrail Roll Forming Machine For Supporting Profile & Connection Beam

    Guardrail Bracket Roll Forming Machine



    Roll forming machine for production expressway guardrail supporting profile & Connection Beam

    The profile adopted as W Beam carrier is the roll forming profile to connect and support the guard rail system. It can be completed by one line and without any other process tooling. We special design the line to reduce the client labor cost. This whole line is consisted of hydraulic de-coiler (5Tons), flatting machine, hydraulic holes punching machine, main Roll forming machine, hydraulic station and electrical system, etc.

    Expressway Guard Rail Forming Technology

    De-coiler - Coil strip leveling- Punching-I for horizontal hole)-Punching-II (for vertical hole)-Roll forming- straightening device---Cut to length- Product packaging (manual)

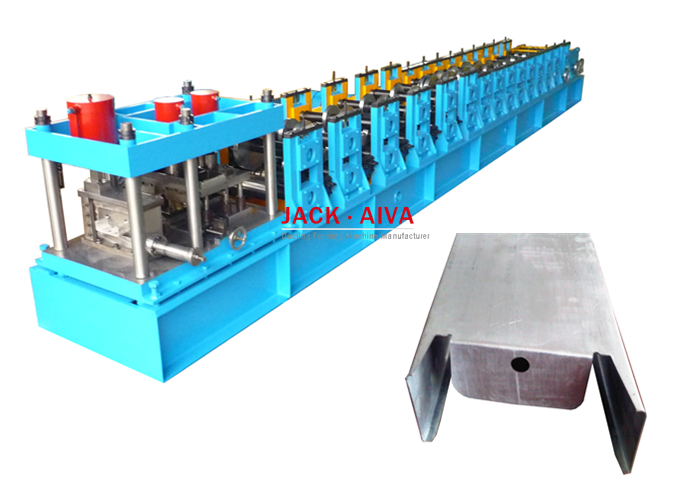

    Guardrail Roll Forming Machine For Supporting Profile & Connection Beam

    Main parameters of Expressway guardrail roll forming machine for connection profile

    Line structurePortal-type frame style: 45# steel
    Roll Formed Profile Type:Guard Rail supporting profile
    Raw material thickness2mm
    Forming Roller Stations:18 Stations
    Forming Roller shaft:¢70mm, 40Cr, quenching, treating
    Forming rollersGCr15, quenching, hardness HRC56-62º
    Forming Speed:12 meters / min (suggestion speed: 7-8m/min, not including cutting & punching)
    Main motor:15kw
    Suitable raw material:Q235A galvanized steel sheet
    Driving mode:1 inch chain driving system
    Cutting mode:automatic punching cutting style
    Blade material:Cr12, quenching and treating
    Control modePLC, Frequency control, speed adjustable,

    Expressway guardrail connection & support profile

    Normally this profile is manufactured by the Roll forming machine and the both ends can be formed by the separated punching. The following profile is typical profile as client reference. The custom express high way guardrail profile is welcome!

    Guardrail Roll Forming Machine For Supporting Profile & Connection Beam

    Relative profiles in Expressway guardrail system

    We offer Innovation and Design of complete rollforming machine for the Highway industry, including installation and world class service. We are a global supplier of Rollforming Systems with a Local presence. We specialize in roll former machines engineered to produce expressway 2 – space W beam guardrails, Guardrail sigma posts, corrugated steel beam, Sign posts, highway Barriers, steel guardrail cross beam, Guardrail End, etc. .

    .
