    Guardrail Bull Nose Bending Machine

    Ask Lasest Price
    Brand Name : Jack-Aiva
    Price : Negotiable
    Delivery Time : 70 working days
    Payment Terms : T/T L/C
    Certification : CE SGS
    • Product Details
    • Company Profile

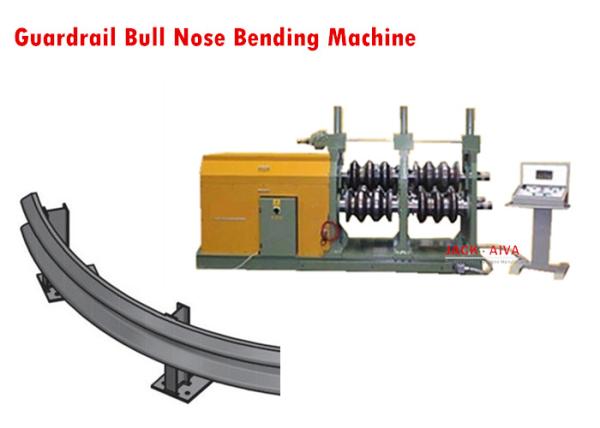

    Guardrail Bull Nose Bending Machine

    Guardrail Bullnose Rolling Machine, Guardrail Bull Nose Bending Machine



    Guard Rail bending, rolling machine technology specification

    Guard rail bull nose is designed for the production at the expressway corner. This part is manufactured by the bending machine.

    The guard bending machine (rolling) is special designed for bending Expressway Guardrail, there have two sets rolling machines, the W beam guardrail bending machine, three beam guardrail bending machine.

    This is three rollers bending machine, consisted of driving motor, three forming rollers, PLC control system, etc.


    Guardrail bull nose making machine Main Parameters

    Rolling material(㎜)2mm--4 mm x312mm
    Working speed10m/min
    Motor power30KW
    Roll forming3 stations
    Roll material:GCr15, hardness HRC58-62
    Arc adjusting motor power3Kw
    Sizes2000×1200×1300mm
    Bending stylehorizontal type
    Guardrail bending technology:PLC control

    Guardrail bull nose Application

    Please contact with us for optimized selection and discussion well for you and meet your expectations.
