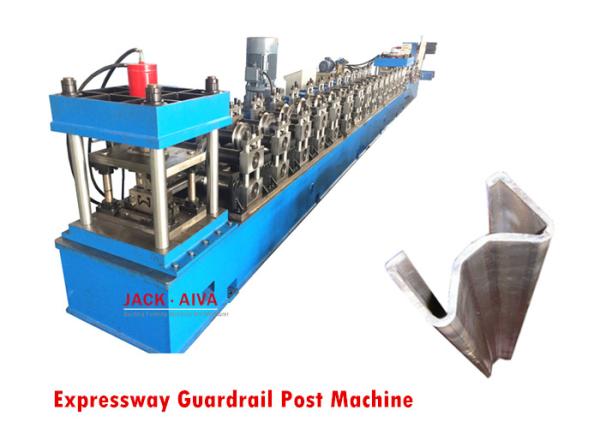

Expressway Guardrail Post Roll Forming Machine

Expressway guardrail post roll forming machine for production Sigma Pillar

Sigma pillar as an important member of Post guardrails system is widely adopted. The roll-formed galvanized guardrails Post feature the latest advancements in highway safety barrier technology to ensure maximum strength and long-term durability of our products.

Expressway Guardrail sigma pillar Forming Machine is an expert machine specialized in guard rail system.

Technology Specification- Expressway guardrail post roll forming machine

This roll forming machine mainly consists of conic, guide equipment, leveling system, edge cutting, punching, roll forming system, roll forming cutting system, stacking equipment, stacking move equipment, hydraulic station, electric control cabinet.

Hydraulic De-coiling -- Feeding material--leveling--Punching holes -- roll forming--hydraulic cut to length--run-out table

Main Parameters- Expressway guardrail post roll forming machine

Line structure Portal-type frame style: 45# steel

Roll Formed Profile Type Guard Rail post of Sigma pillar

GI steel strip thickness 3.5mm - 4.2mm

Raw material width 228mm (can be custom prepared)

Forming Roller Stations: 15 Stations (7 rolls leveling)

Forming Roller shaft: ¢100mm, 45#, treating

Forming rollers GCr15, quenching, hardness HRC56-62º

Forming Speed: 12 meters / min (suggestion speed: 7-8m/min)

Main motor: 55kw

Suitable raw material: Q235A galvanized steel sheet

Driving mode: Gearing box

Cutting mode: automatic punching cutting style

Blade material: Cr12, quenching and treating

Control mode PLC & Touch screen

Expressway guardrail Post / Sigma Pillar profile

The following is the typical sigma pillar guardrail post, still another C post for expressway guardrail system is also popular in the present market. We can custom design the roll forming machine according to client request. .

It is our goal for us to provide high quality customized roll forming machines for various industry, such as agricultural, Appliances, Building Products, Curtain Rods, Tube and Pipe, Furniture & Lighting, Garage Doors, Highway & Roads, Home Furnishing, HVAC, Pallet Racking & Shelving, Steel Framing Machines, Auto and Transportation, Ceiling & dry Wall system,and other relative roll formed product manufacturing machine for customers around the globe.

At Jack-aiva, we adhere to strict implementation of ISO standards in production and operation. We purchase superior materials and components from well-known branded companies. All incoming materials are inspected by highly trained professional personnel to ensure the reliability of our products from the very beginning. Our staff undergoes continual training to improve skills and raise awareness of quality. Furthermore, by establishing partnerships and technical support with specialized research institutions. We are able to guarantee the superiority of our products. Our quality inspection department conducts rigorous quality checks throughout the manufacturing process, all to ensure our machines are compliant with international standards. From the selection of our outsourced parts, through each stage of production, to the final product, SBJX works hard to make sure our machines are head and shoulders above the competition.

In order to provide high quality products at affordable prices, our SBJX strive to cut our costs in a variety of ways without compromising on quality. For example, through the use of effective management and efficient distribution of enterprise resources, we can reduce waste at very step of production. Advanced manufacturing equipment also helps improve our production efficiency, resulting in reduced costs. What’s more, our location affords us easy access to an abundance of raw materials, enabling us to acquire superior materials at low prices from local suppliers. Our manufacturer is in the booming economy in the Yangtze River Delta. This along with our easy access to many forms of transportation, greatly reduces our logistics costs and lowers customer’s shipping chargers. These factors enable us to offer our products at lower prices.

Our products have gained us a great number of customers throughout the world. If you are interested in our products, please contact with us via phone or email. The staff at SBJX is looking forward to working with you.
