Grain Silos Corrugated Steel Wall Machine

Roll Forming Line for production grain silos wall 1.6mm thickness

Grain silos Corrugated Steel wall Machine is consisted of two parts, one is the corrugated steel sheets roll forming machine, another one is a three roll double pinch machine. The forming machines are specifically designed to roll forming corrugated sheets of galvanized steel up to 1.6mm thick. it is for walls for grain silos.. The profile can be custom made according to request.

• Roll forming machine for grain silos wall - 1.6mm thickness

Corrugated Sheet Roll Forming line consists of Uncoil device, Roll forming machine, Hydraulic automatic cut-off, Products run-out table, PLC automatic control system, etc.

Also this roll forming line can roll form pre-cut flat sheets. Considered the better corrugated sheets, the coil as raw material is recommended.

Corrugated steel sheet production line Main Parameters

• Grain silos Corrugated steel sheet rolling machine

This kind corrugated sheet rolling machine can bend riveted corrugated steel tanks and agricultural silos with formed corrugated sheet, It is basically a three roll double pinch machine. It was specifically designed for bending corrugated materials in steel Corrugated sheets, process the different material thickness. Corrugated steel is mainly rolled for tanks. These are built per customer requirements.

Curved roll former machine –the machine to have digital read-out with electric motors for adjustment, for the ease of use between different radius sizes this will help with job changes ( 6 foot, 9 foot and 12 foot diameters).

Main Parameters

- Feeding material size: The Corrugated flat sheets shape for the bending is as following, 0.8-1.6 mm colored steel roof panel.

- Line speed: 0-10m/min

- Main power: 5.5KW

- Feeding panel profile: YX16-38.1 (1225mm)

- Control system: simple electrical control system, 3XAC380, 50hz

- Max Feeding material thickness:: 1.6mm.

-. Size of machine: 1500 mm×1200 mm× 1400 mm

- Equipment weight: 1000kg

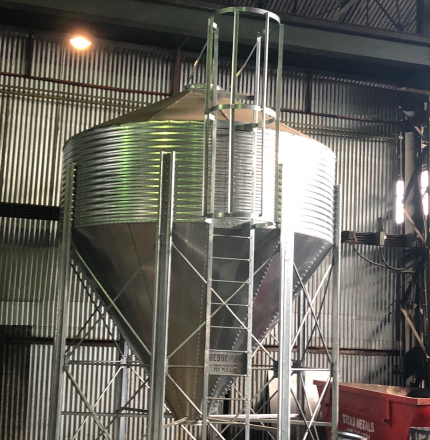

• Application sample: Grain silos tank

It is our goal for us to provide high quality customized roll forming machines for various industry, such as agricultural, Appliances, Building Products, Curtain Rods, Tube and Pipe, Furniture & Lighting, Garage Doors, Highway & Roads, Home Furnishing, HVAC, Pallet Racking & Shelving, Steel Framing Machines, Auto and Transportation, Ceiling & dry Wall system,and other relative roll formed product manufacturing machine for customers around the globe.

At Jack-aiva, we adhere to strict implementation of ISO standards in production and operation. We purchase superior materials and components from well-known branded companies. All incoming materials are inspected by highly trained professional personnel to ensure the reliability of our products from the very beginning. Our staff undergoes continual training to improve skills and raise awareness of quality. Furthermore, by establishing partnerships and technical support with specialized research institutions. We are able to guarantee the superiority of our products. Our quality inspection department conducts rigorous quality checks throughout the manufacturing process, all to ensure our machines are compliant with international standards. From the selection of our outsourced parts, through each stage of production, to the final product, SBJX works hard to make sure our machines are head and shoulders above the competition.

In order to provide high quality products at affordable prices, our SBJX strive to cut our costs in a variety of ways without compromising on quality. For example, through the use of effective management and efficient distribution of enterprise resources, we can reduce waste at very step of production. Advanced manufacturing equipment also helps improve our production efficiency, resulting in reduced costs. What’s more, our location affords us easy access to an abundance of raw materials, enabling us to acquire superior materials at low prices from local suppliers. Our manufacturer is in the booming economy in the Yangtze River Delta. This along with our easy access to many forms of transportation, greatly reduces our logistics costs and lowers customer’s shipping chargers. These factors enable us to offer our products at lower prices.

Our products have gained us a great number of customers throughout the world. If you are interested in our products, please contact with us via phone or email. The staff at SBJX is looking forward to working with you.
