Shelf Pillar Roll Forming Line

Roll Forming Machine for the Manufacture of Storage Rack Post

The Shelf Storage Racks is a cost effective storage system providing direct access to all pallets. It provides high capacity storage, easy installation and adjustment, low costs.

With the production advantage of the shelving & storage racks roll forming machine, an extensive catalogue of shelving, heavy duty shelving, shelving and racking for warehouse and office are developed rapidly.

Now steel profiles for high storage units, supports and shelf bases for all types of successful warehousing systems are produced by rack cold roll forming machines mostly.

This is a shelf profile that is assembled from two OMEGA profiles. There are square holes on the column.

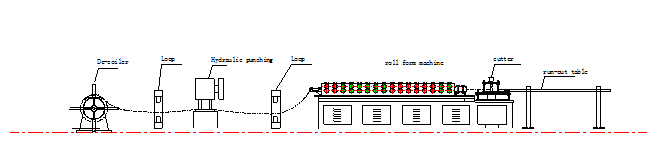

Technology Processing Flow- Shelf pillar Roll Forming Line

The whole Omega profile roll forming line is consisted of de-coiler, leveler, Punching with holes punching mould and servo feeder, Main roll forming machine, cutting equipment, hydraulic system, control system, etc

De-coiling ---leveler-- holes punching—Roll forming—cut to length—Run out table

The two omega profiles assembled by Spot welding machine.

Main Parameters- Shelf pillar Roll Forming Line

- Suitable Raw material: GI steel sheet, Middle carbon steel sheet, σs≤260Mpa; 2 mm× L

- Punching machine with moulds 1 set, 63T

- Forming Roller Stations: 12 Stations

- Main shaft: 45﹟forge steel diameter roller: Ф65mm

- working speed: 12m/min (include punching and cutting, length in ≥6m)

- Total power: 7.5kw

- Cutting mode: Automatic control, cut to length

- Hydraulic station power 4kw

- Power: 380V/3ph/50Hz (or according to the buyer's requirement)

Storage Rack Pipe Post

This upright is the important Profile for shelving in storage racking industry. The following are the typical of heavy shelving upright for reference.

Customized storage rack post profile are welcome!

Shelving in storage racking industry

Boltless Shelving, upright post, upright post, step beam, Drawer Racking, Drive-in Racking, Push Back Racking, Live Racking, Mobile shelving, Cantilever Racking, Multi-tier Racking, Carton Flow Racking
