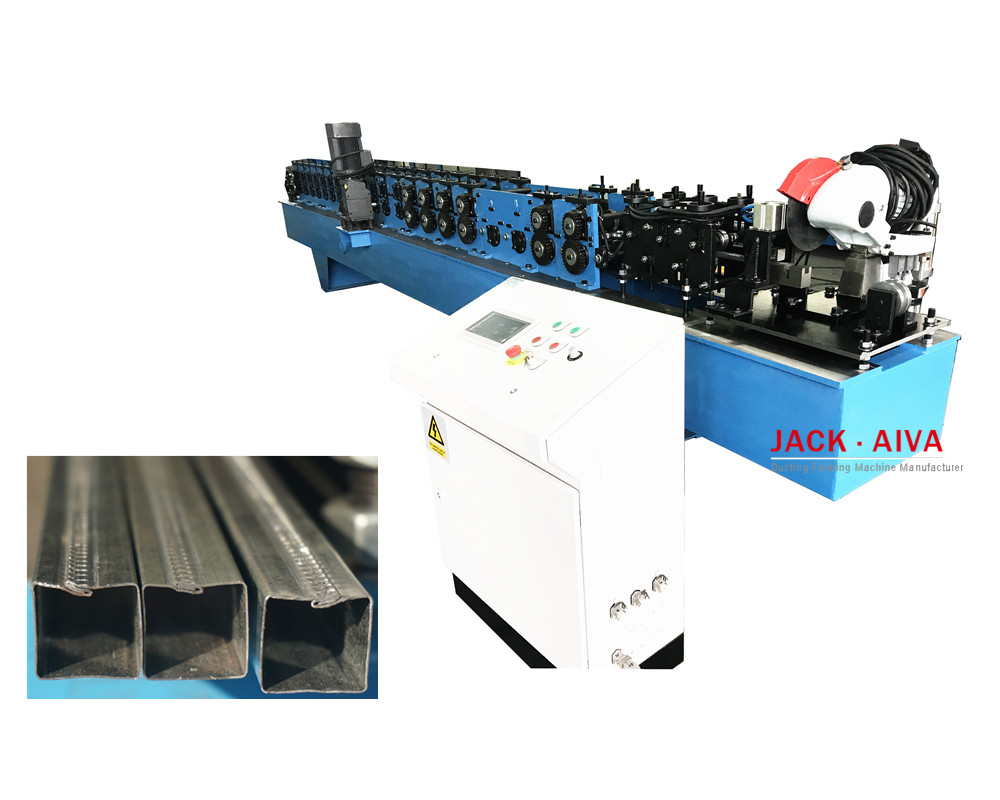

Roll Forming Machine for Production tube Or Square pipe

This style Tube Production Line is special designed for manufacturing square pipes, The different pipe sizes can be achieved by the line. Mainly used for building industry. The pipe seam is by cold roll formed technology, without welding. The advantage of this solution is the lower cost if compared with pipe welding line.

Technology specifications - Square pipe or Tube production machine

The Square pipes are formed by roll forming technology, locked with straight seam. The normal feeding GI steel strip thickness is 0.4mm. The roll forming line is consisted of manual de-coiler, main roll forming machine, saw cutter, run-out table and electrical control system, etc.

The pipe making machine roll forming Technology is as following, De-coiling ---- cold roll forming --- cutting ---completed products

Main Parameters - Oval duct Making Machine

Raw material specification: GI steel, suitable for cold roll forming technology; thickness: 0.4mm

De-coiler: Max capacity 1000KG; MAX. Coil OD 1300mm; Coil ID adjustable range 350-500mm

Roll forming stands: 17 sets

Roller material: GCr15; Rolls hardness after treatment: 58º-60º

Roller diameter: Φ42mm; 45# steel

Motor power: 5.5KW

Cutting system: Positioning: by round saw Cutter.

Run-out table: Length: 4000mm; Width: 100mm

Applications - Oval duct or Flat duct

We provide patented invention-JACK-AIVA square pipe Series to meet the clients' market. It is being used as culverts and forms for Building Decoration fields.

One size pipe can be produced by one Roll forming machine, tube profile drawing or sample are necessary for the pipe making machine design.
