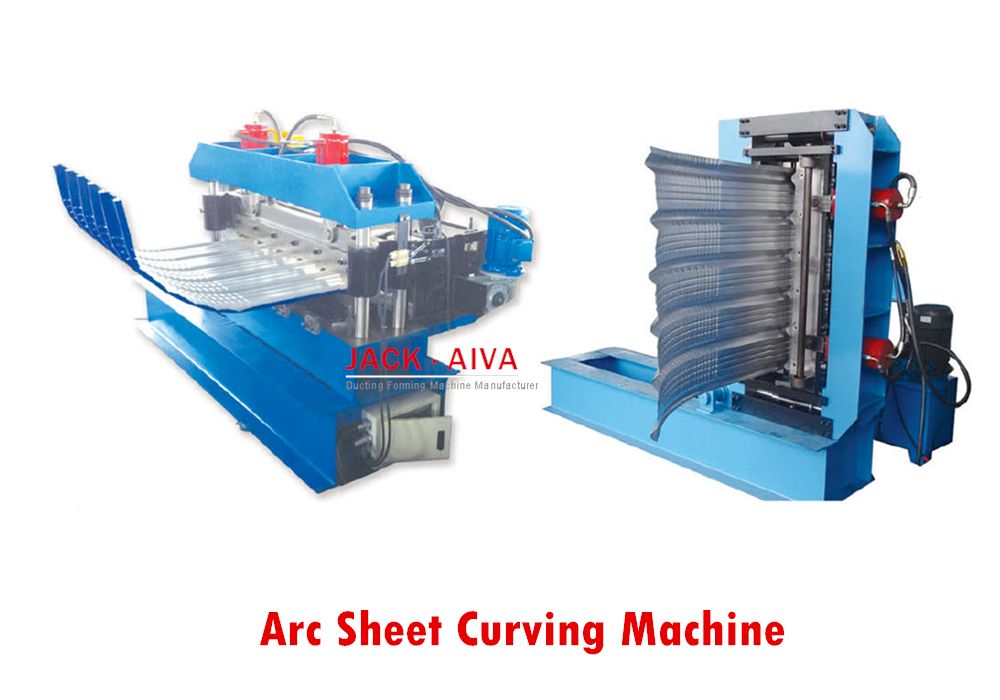

    Curving Machine, Arc sheet curving machine

    Hydraulic metal sheet panel curving machine



    Hydraulic Metal sheet Arch curving machine is used to bend the formed corrugated sheets into horizontal stripes through hydraulic crimping mold. The distance between each press will decide the curvature of the arch. It is suitable for edge of buildings, parking garage, pavilion and various round roofs of buildings. The Composition of hydraulic Metal sheet Arch curving machine can crimp both ends of roofing sheet.

    This machine is developed based on the horizontal style arc panel curving machine, it has the Flexible operation, vertical operation or horizontal operation can be possible by this machine.


    Hydraulic curving machine Main Parameters

    ITEMCONTENT
    Formed Profile Type:Arch Roof panel
    Raw material thickness:0.3-1.0 mm
    Corrugated Punching mouldsCR12, HRC55-60
    Line speed:0-10m/min
    Main power:0.85KW
    Hydraulic station power5.5KW
    Electrical control systemPLC
    Max. bending angle120
    Machine size3000 mm×1400mm×1400 mm

    We also can do a custom roll forming machine, i.e. We can design the machine according to your specification and profile drawing.
