    Crimping Machine, Metal Sheet Crimping Machine

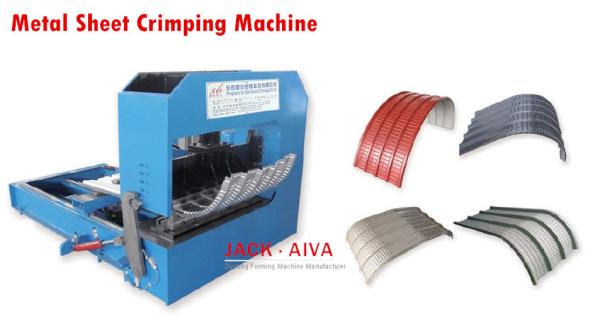

    Hydraulic arch crimping machine



    Hydraulic Arch crimping machine is used to crimp the formed corrugated sheets into horizontal stripes through hydraulic crimping mold. The distance between each press will decide the curvature of the arch. It is suitable for edge of buildings, parking garage, pavilion and various round roofs of buildings. The Composition of hydraulic Arch crimping machine Crimping main machine and Control panel, this crimping machine can crimp both ends of roofing sheet.


    Hydraulic arch crimping machine Main Parameters

    ITEMCONTENT
    Formed Profile Type:Arch Roof panel
    Raw material thickness:0.3-1.0 mm
    Corrugated Punching mouldsCR12, HRC55-60
    Line speed:0-10m/min
    Feeding mode:Servo motor, 1kw
    Main power:0.85KW
    Hydraulic station power5.5KW
    Electrical control systemPLC
    Max. bending angle120
    Machine size3000 mm×1400mm×1400 mm

    We also can do a custom roll forming machine, i.e. We can design the machine according to your specification and profile drawing.

    TAG: Arch crimping machine; Metal Sheet Crimping Machine; Metal sheet Cranking machine; Ridge Cap Bending machine; Cranking machine, Arc sheet curving machine, crimping machine, Arch Crimping Machine
