Roll Forming Machine for Light Gauge Steel Frame Building, MF300

Brief introduction- MF300 Roll Forming Machine for Light Gauge Steel Frame Building, C & U Profile

The Light gauge steel frames produced by our lines are special for the dry wall partition beam system of constructing house,

The design gives a fire proof and easily erected system for partitioning and various other uses. The component parts of the system are ideal for Dry wall partition and ceiling suspension in commercial and residential application

MF300 Light Gauge Steel Frame Roll Forming Machine comes in fully auto models which can produce many types of thin gauge cold formed steel, C profile and U profile. The Partition beam roll forming machine is designed for manufacturing high quality studs and tracks in various sizes with our patent technology.

The main roll former is with safety guard coved. to ensure workers safe. Each parts of safety guard is linked with lock. safety switch is available to stop machine when safety guard is open.

The whole line is controlled by PC, this system is able to read TXT Format and connect with machine directly. it can control machine auto running and demonstrate forming status dynamically. including punching and cutting. also it is able to scan production date with the PC system.

Machine Components- MF300 Light Gauge Steel Frame Roll Forming Machine

Dry Wall Partition Beam Roll Forming Machine is consisted of It is consist of de-coiler, main forming machine, straightening part, punching, cut-to length device, run-out table and CNC Control system, etc.

Main Parameters - MF300 Light Gauge Steel Frame Roll Forming Machine

Drywall Partition and Ceiling Sections

We introduce the most cost effective Steel stud manufacturing cold roll forming technology for producing light gauge steel sections for commercial building frames ( stud wall construction ) and also roof trusses. There are many kinds of profiles of the dry wall partition beam & stud partition as the different market has the different requirement, we design and produce the forming machine according to clients’ drawings or samples normally.

The following C and U profile can be produced by our MF300 Light Gauge Steel Frame Roll Forming Machine

C Profile 250MM & 300MM - Floor Panel :

- Profile Width range: 250 / 300mm

- Profile High Range: 50mm

- Lip width: 10~20mm

- Thickness Range: 15~2.5mm

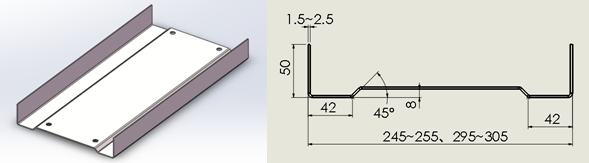

U Sigma profile 250MM & 300MM - Floor Panel :

- Profile Width range: 250 / 300mm

- Profile High Range: 50mm

- Thickness Range: 15~2.5mm

U profile 250MM & 300MM - Floor Panel :

- Profile Width range: 250 / 300mm

- Profile High Range: 50mm

- Thickness Range: 15~2.5mm

STUD - C Profile 140MM

- Profile Width range: 140- 150mm

- Profile High Range: 50mm

- Lip width: 10~15mm

- Thickness Range: 1.0~1.8mm

TRACK - C Profile 140MM

- Profile Width range: 140 - 150mm

- Profile High Range: 50mm

- Thickness Range: 1.0~1.8mm

APPLICATION

MF300 is a kind of intelligent light gauge steel frame building keel device, which can be independently developed and produced by our intelligent technology. It can realize CNC machining of various parts such as walls, floors and even stairs.

The operation procedure can directly import design data or directly input required parameters. All you need to do for model changes is enter the changed canonical size on the console, and then click change type. The entire device then moves to the desired location completely automatically, without human intervention. High flexibility and intelligent production is a major feature of MF. Under the background of the new era, light steel structure building in the high-rise, heavy and light combination of various application fields is developing rapidly, highly flexible intelligent light steel processing equipment is your choice in the future.

It is our goal for us to provide high quality customized roll forming machines for various industry, such as agricultural, Appliances, Building Products, Curtain Rods, Tube and Pipe, Furniture & Lighting, Garage Doors, Highway & Roads, Home Furnishing, HVAC, Pallet Racking & Shelving, Steel Framing Machines, Auto and Transportation, Ceiling & dry Wall system,and other relative roll formed product manufacturing machine for customers around the globe.

At Jack-aiva, we adhere to strict implementation of ISO standards in production and operation. We purchase superior materials and components from well-known branded companies. All incoming materials are inspected by highly trained professional personnel to ensure the reliability of our products from the very beginning. Our staff undergoes continual training to improve skills and raise awareness of quality. Furthermore, by establishing partnerships and technical support with specialized research institutions. We are able to guarantee the superiority of our products. Our quality inspection department conducts rigorous quality checks throughout the manufacturing process, all to ensure our machines are compliant with international standards. From the selection of our outsourced parts, through each stage of production, to the final product, SBJX works hard to make sure our machines are head and shoulders above the competition.

In order to provide high quality products at affordable prices, our SBJX strive to cut our costs in a variety of ways without compromising on quality. For example, through the use of effective management and efficient distribution of enterprise resources, we can reduce waste at very step of production. Advanced manufacturing equipment also helps improve our production efficiency, resulting in reduced costs. What’s more, our location affords us easy access to an abundance of raw materials, enabling us to acquire superior materials at low prices from local suppliers. Our manufacturer is in the booming economy in the Yangtze River Delta. This along with our easy access to many forms of transportation, greatly reduces our logistics costs and lowers customer’s shipping chargers. These factors enable us to offer our products at lower prices.

Our products have gained us a great number of customers throughout the world. If you are interested in our products, please contact with us via phone or email. The staff at SBJX is looking forward to working with you.
