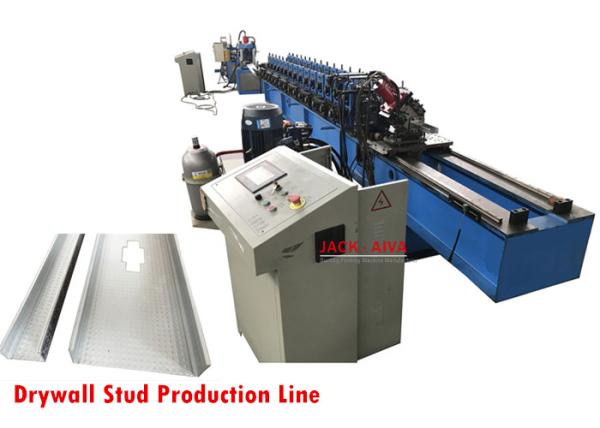

Drywall Stud Production Line, Stud Roll Forming Machine

Brief Introduction- Stud Roll Forming Line with holes punching online

Our Drywall partition beam roll forming machine comes in semi auto and fully auto models which can produce many types of thin gauge cold formed steel. The Drywall stud Roll Forming Machine is consisted of de-coiler, hydraulic punching device, main roll forming machine, servo control hydraulic tracing cutter and run out table (flexible style discharge table). The line speed is designed according to 20m/min. The driving system is by reducer and main gearing box.

Drywall Partitioning Beam System- Stud

The drywall partitioning system is widely adopted in offices and residential buildings, because of its easiness of installation and the possibility of making changes any time after installation without infrastructure.

In addition It's considered as economic and liable solution for dividing any open area with considering the fact that it is not designed for applying high loads.

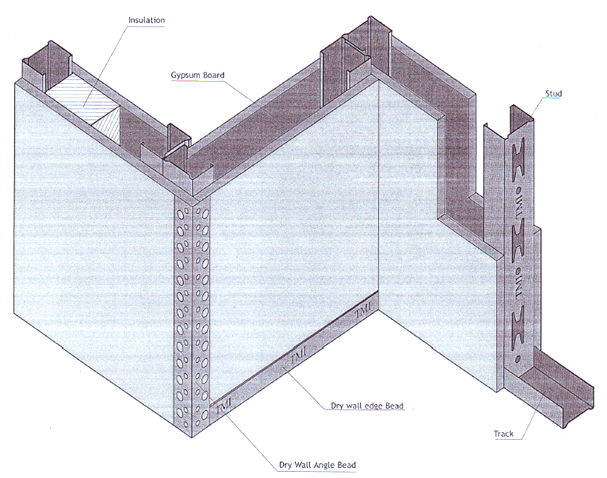

The drywall partition beam system are consisted of stud, track, drywall angle bead and drywall edge bead, etc.

Roll Forming Line technology flow

Manual De-coiling (3 tons)+leveler (2 in 1)--- Servo motor control Feeder + Hydraulic punching with hole punching moulds--- Main Roll forming Machine ---- run out table (flexible style discharge table IS Optional)

Main Parameters- Drywall Studs Roll Forming Machine

Drywall Partition Sections- Stud

We introduce the most cost effective Steel stud manufacturing cold roll forming technology for producing light gauge steel sections for commercial building frames ( stud wall construction ) and also roof trusses. There are many kinds of profiles of the dry wall partition beam & stud partition as the different market has the different requirement, we design and produce the forming machine according to clients’ drawings or samples normally.

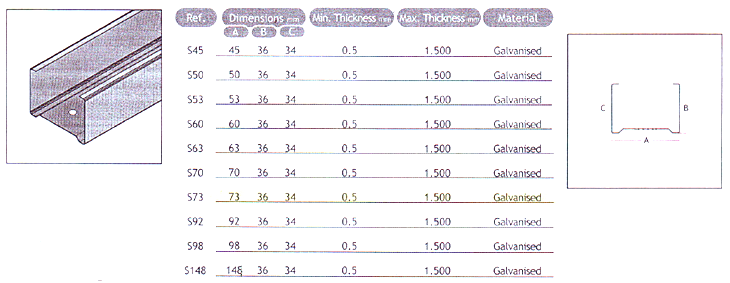

The following are the typical drywall stud sizes list for your reference.

Roll forming machine for manufacturing the production profiles for Ceiling & dry Wall system

It is our goal for us to provide high quality customized roll forming machines for various industry, such as agricultural, Appliances, Building Products, Curtain Rods, Tube and Pipe, Furniture & Lighting, Garage Doors, Highway & Roads, Home Furnishing, HVAC, Pallet Racking & Shelving, Steel Framing Machines, Auto and Transportation, Ceiling & dry Wall system,and other relative roll formed product manufacturing machine for customers around the globe.

At Jack-aiva, we adhere to strict implementation of ISO standards in production and operation. We purchase superior materials and components from well-known branded companies. All incoming materials are inspected by highly trained professional personnel to ensure the reliability of our products from the very beginning. Our staff undergoes continual training to improve skills and raise awareness of quality. Furthermore, by establishing partnerships and technical support with specialized research institutions. We are able to guarantee the superiority of our products. Our quality inspection department conducts rigorous quality checks throughout the manufacturing process, all to ensure our machines are compliant with international standards. From the selection of our outsourced parts, through each stage of production, to the final product, SBJX works hard to make sure our machines are head and shoulders above the competition.

In order to provide high quality products at affordable prices, our SBJX strive to cut our costs in a variety of ways without compromising on quality. For example, through the use of effective management and efficient distribution of enterprise resources, we can reduce waste at very step of production. Advanced manufacturing equipment also helps improve our production efficiency, resulting in reduced costs. What’s more, our location affords us easy access to an abundance of raw materials, enabling us to acquire superior materials at low prices from local suppliers. Our manufacturer is in the booming economy in the Yangtze River Delta. This along with our easy access to many forms of transportation, greatly reduces our logistics costs and lowers customer’s shipping chargers. These factors enable us to offer our products at lower prices.

Our products have gained us a great number of customers throughout the world. If you are interested in our products, please contact with us via phone or email. The staff at SBJX is looking forward to working with you.
