Cross T Grid Roll Forming Machine, Cross T bar Roll Forming Line

Brief Introduction- Ceiling T Grids of Suspension System

Cold Roll Forming Machines for production metal Ceiling T grid system profiles, We provide you the fully automatic machine with in-line punching of T-bars in the various custom models and sizes. The ceiling T Grids suspender system main components are consisted of main T-Bar Machine, cross T-Bar Machine and Wall L Angle.

There have three auto roll forming lines for production the t bar ceiling system, the man t bar roll forming machine, cross t bar roll forming machine and L angle roll forming machine.

Roll Forming Line specifications - Cross T Grid Roll Forming Machine

We can supply the Complete roll forming lines for the production of T-bars in the various models and sizes, Flexibility in the choice of the sizes, Possibility to produce also complex profiles.

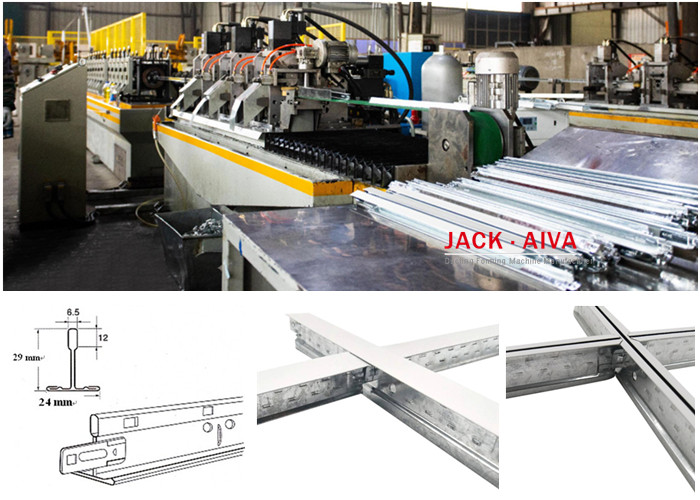

The full automatic cross T-bar (Tee) Cold Roll Forming Machine is consisted of Single or Dual Head Type de-coiler, Roll forming main machine, Hydraulic, Automatic Punching and cut-off Device, run-out table, PLC Automatic Control Cabinet. The main T grid can be finished by our auto line at one time.

Machine Parameters- Cross T grid Cold Roll Forming

The following Cross T grid Profile is as reference

Cross T grid: METAL THICKNESS: 0.28mm; LENGTH: 600mm, 1,200mm

Cross T bar production machine Accessories:

Holes and ends punching Dies is including this roll forming machine. These moulds can be custom designed according client drawing or sample.

Cross T grid Application - Ceiling T Grids of Suspension System

Ceiling T Grids, A system of Ceiling Suspension System members, The ceiling T Bar Lay in Grid System consists of only one tile per module with both the main runner and cross runner exposed. All edges of the tile are supported by the exposed T bars reducing the chance of visible damage after accessing the ceiling cavity. It is the ideal solution for suburban offices, hospitals and schools offering a simple system that is easy to maintain and install.

T-Runner Suspended exposed ceiling grids

The Tee bar size is according to clients’ request. You are welcome to contact with us for the further details!

It is our goal for us to provide high quality customized roll forming machines for various industry, such as agricultural, Appliances, Building Products, Curtain Rods, Tube and Pipe, Furniture & Lighting, Garage Doors, Highway & Roads, Home Furnishing, HVAC, Pallet Racking & Shelving, Steel Framing Machines, Auto and Transportation, Ceiling & dry Wall system,and other relative roll formed product manufacturing machine for customers around the globe.

At Jack-aiva, we adhere to strict implementation of ISO standards in production and operation. We purchase superior materials and components from well-known branded companies. All incoming materials are inspected by highly trained professional personnel to ensure the reliability of our products from the very beginning. Our staff undergoes continual training to improve skills and raise awareness of quality. Furthermore, by establishing partnerships and technical support with specialized research institutions. We are able to guarantee the superiority of our products. Our quality inspection department conducts rigorous quality checks throughout the manufacturing process, all to ensure our machines are compliant with international standards. From the selection of our outsourced parts, through each stage of production, to the final product, SBJX works hard to make sure our machines are head and shoulders above the competition.

In order to provide high quality products at affordable prices, our SBJX strive to cut our costs in a variety of ways without compromising on quality. For example, through the use of effective management and efficient distribution of enterprise resources, we can reduce waste at very step of production. Advanced manufacturing equipment also helps improve our production efficiency, resulting in reduced costs. What’s more, our location affords us easy access to an abundance of raw materials, enabling us to acquire superior materials at low prices from local suppliers. Our manufacturer is in the booming economy in the Yangtze River Delta. This along with our easy access to many forms of transportation, greatly reduces our logistics costs and lowers customer’s shipping chargers. These factors enable us to offer our products at lower prices.

Our products have gained us a great number of customers throughout the world. If you are interested in our products, please contact with us via phone or email. The staff at SBJX is looking forward to working with you.
