    Lighting Fixture Production Line, Roll Forming Machine

    Ask Lasest Price
    Brand Name : Jack-Aiva
    Price : Negotiable
    Delivery Time : 7 days
    Payment Terms : T/T L/C
    Certification : CE SGS
    • Product Details
    • Company Profile

    Lighting Fixture Production Line, Roll Forming Machine

    Lighting Fixture Roll Forming Machine



    Roll Forming Machine for Production Lighting Fixture


    Metal processing equipment for the lighting industry, Our Lighting fixture manufacturing roll forming machine and related production equipment produce fluorescent channels, troffer, reflectors, louvers, blades, and covers from gloss- painted steel and highly polished anodized aluminum. We design the roll forming machines that achieve critical cosmetic surfaces and production efficiency can be met your requirements. In-line precision punching and notching make the designs assembly-ready. See us for manufacturing equipment to produce everything from under-counter lighting to commercial and industrial florescent light fixture components.


    technology specifications- Lighting Fixture Roll Forming production line

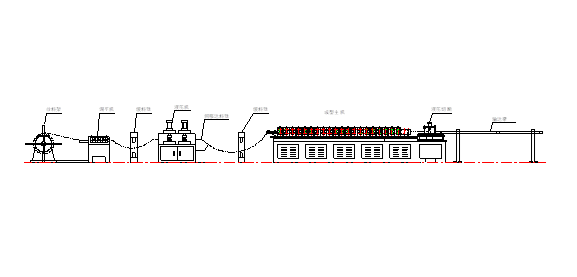

    Lighting Fixture production line is an expert machine specialized in lighting fixture industry. The ceiling troffers profile roll forming machine mainly consists of conic, guide equipment, leveling system, notching, punching, roll forming system, roll forming cutting system, stacking equipment, hydraulic station, electric control cabinet.


    Lighting Fixture production Rail Forming Technology


    Main Parameters - light fixtures Roll forming machine

    Line structurePortal-type frame style: 45# steel
    Forming Roller Stations:20 Stations
    Forming Roller shaft:¢57mm, 40Cr, quenching, treating
    Forming rollersCR12MOV, quenching, hardness HRC58-60º
    Forming Speed:0-8m / min
    Main motor:11kw
    Hydraulic station motor15kw
    Suitable raw material:Q235A galvanized steel sheet
    Driving mode:Chain
    Cutting mode:automatic punching cutting style
    Blade material:CR12MOV, quenching and treating
    Control modePLC

    Lighting Fixtures profile

    The main process of light fixtures is completed by the Roll forming machine, both ends process by separate hydraulic press machine. The following is the profile, the custom lighting fixtures profile is welcome!
